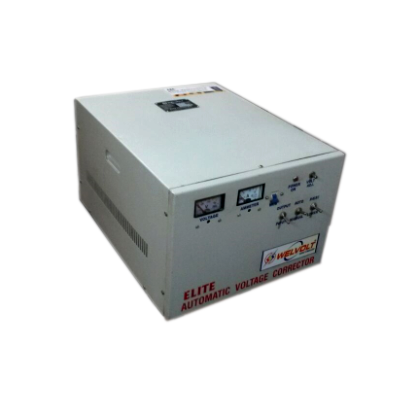

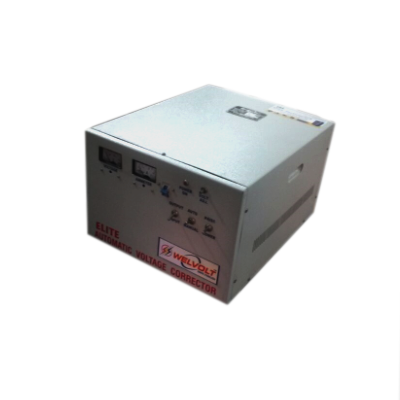

SINGLE PHASE





TECHNICAL SPECIFICATION

SALIENT FEATURES

Very High Efficienty above 98% Very Low No Load Losses.
Ruggedised Construction.
Quick response time 10 milli sec (half a cycle).
Excellent regulation as high as +0.5%.
Introduces zero wave - form distortion.
Unaffected by load power factor.

APPLICATIONS:

Textile Machinery.
Bio Medical Equipments.
CNC Machines.
Garments Machinery.
Large Computer Installations.
Cell Phone Networks.
Scientific Equipments.
Printing Machinery

PROTECTIONS:

Low Voltage protection.
High Voltage protection.
Short Circuit protection.
Overload protection with MCB/MCCB.
Single Phasing preventer.

GENERAL SPECIFICTIONS:
Input Voltage Range 300-460V AC 3 Ph 50Hz/60Hz Phase to Phase
Other Input Range 320-460V AC/340-380V AC 360-460V AC & 295-465V Ph 50 Hz/60Hz
Output Voltage (3Ph) 400V AC/415 V AC
Out Voltage (1 Ph) 230V AC/240V AC
System Unbalanced 4 wire:RYBN
Connections Star
Operating Frequency 47 to 53 Hz
Output Voltage Regulation  _+1%(NoLoad)
Output Voltage Regulation +_1%(Full Load)
Overload Capacity 120%
Correction Rate 35V/Sec-1Ph:60V/Sec-3Ph
Waveform Distortion Nil
Output Waveform True Reproduction of Input
Insulation Class'B'
Short Circuit period & Percentage 300% for 250 Milli Sec
Normal Operation Temperature 0°C TO 45°C
Climate Conditions 90% Rh Max. Non condensing at 35°C
Type of Cooling Natural Air/Oil Cooled
Mode of System Fully Automatic/Manual
